Description
This 4DOF platform includes:

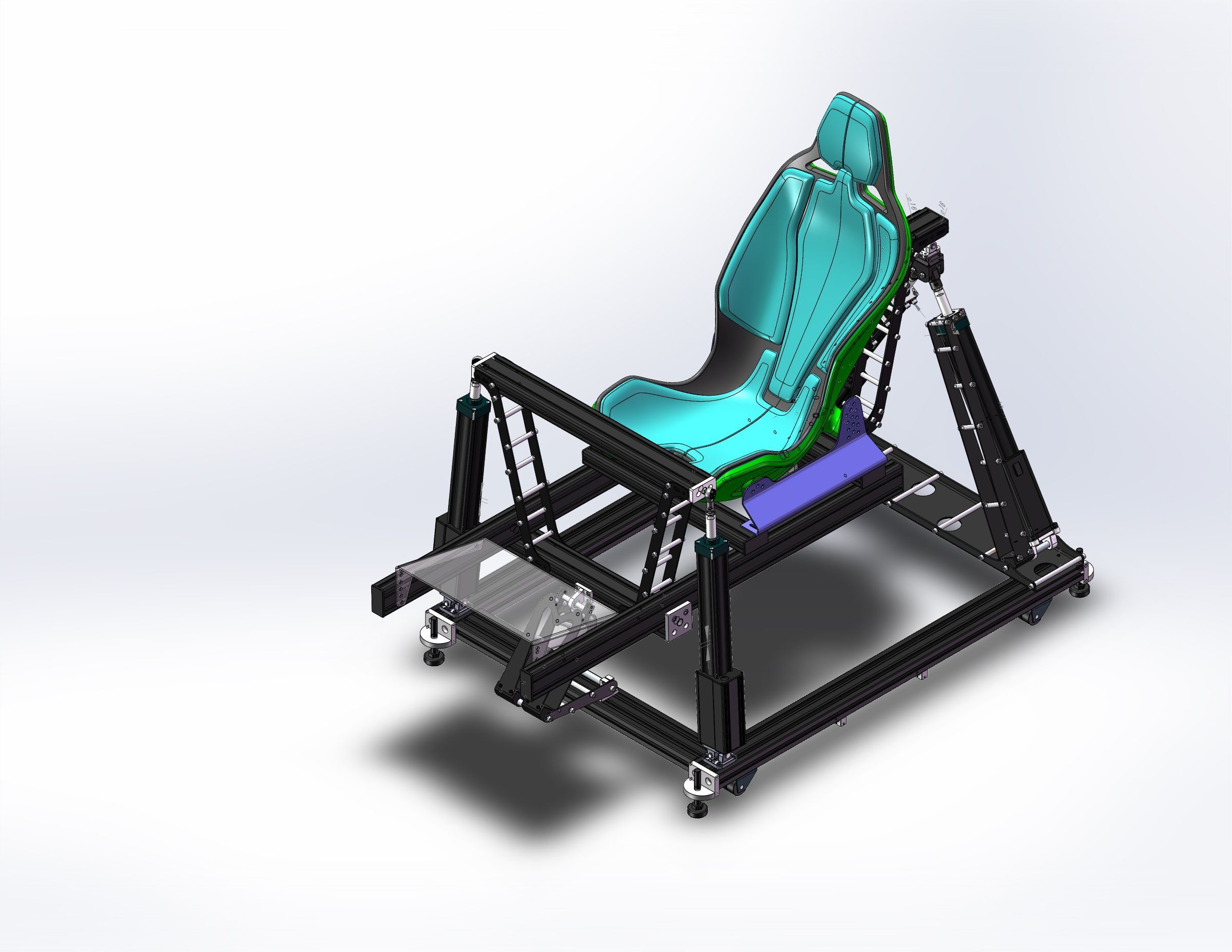

1. Motion system frame body, as below picture
Please notice that a seat is not included, but the simulator itself is compatible with almost all racing and flight seats on the market.
2. Power & wiring kit, as below picture
3. Simracing Assessory Holders, as below picture
4. Install fixed accessories
5. Simtool V3 software (Professional License)
How is D-Mover different?
1. Unique patented 4DOF structure: Unlike many simulators that set the pitch and sway axes under the seat, our simulator's motion axes intentionally designed to follow the way vehicles & aircafts rotate and translate in the real world, which makes the driving experience feels natural, more realistic.
2. Self-developed drive control integrated electric cylinder, The actuator parameter:
Stroke: 270mm(10.5Inches, long stroke can provide large motion range, this is very import for truly simulating forces)
Speed: 240mm/s(Rated)
Loading capacity: Max. 100KG for single actuator or 300KG for platform(Adaptive to loading)
Max Acceleration : 2G
Input voltage: 48V DC.
Use special low voltage DC servo motor, High Dynamic Response. The actuator adopts a drive and control integrated design, and the installation interface is reserved to facilitate the upgrade of the 6-DOF platform
3. The system is Compact 4DOF design, could be expanded to eight-axis 6DOF platform easily.
Occupying Area: 1.5mx1.2m
4. Use DC 48V safety voltage with compact power box. See the below:
Power box size:30*16*12.5cm
Power supply：1500W
Power consumption (average): 120W
Input voltage: AC110/220V(depend on the buyer)
Output voltage: DC 48V (The International Electrotechnical Commission (IEC) stipulates that the safe voltage limit value is 50 DC volts).
Number of supported axes：8
P.S.(It's only a power distributor, no need extra drive controller equipment, our driver controller is integrated to the actuator).
5. Turn key USB kit, easy plug & play
This is a plug & play kit, USB connect, no additional hardware or DIY is needed. Very simple wiring(Possibly the most simple on the market), all you need is plug in, everyone can do it.
6. Due to our speed and position double-loop control tech, this 4DOF system bring us very good performance and immersion. Adopting advanced CANBUS communication mode, Synchronization is also very good, almost no latency(<4ms). Theoretically, it can support synchronous motion of up to 255 axes:).
Packaging and shipping
There will be a total of 2 carton packages(Carton dimensions:130cm*75cm*20cm) , corresponding to three assembled functional modules. After customers receive the items, only need to simply assemble them before they can be used.
Within the sales area, shipping worldwide.
